Lift communicator - New Link Lift Watch NLLW

Print
NLLW
Main characteristics
SKU 2007
Vendor Alfacom
Category Intercoms & access
Standart VoIP/SIP
Weight 0.5 kg
Shipment Worldwide

·       New Link Lift Watch - NLLW - emergency PSTN line intercom for elevators


The Link Lift Watch NLLW is designed for emergency call from lift to first aid (service department, police, etc.)
  • Comply to EN 8128 standard
  • Automatic operation over PSTN network
  • Automatic operation over GSM network
  • Automatic re-dialling of up to 6 phone numbers
  • Hands free communication
  • Powered by analgoue line
  • 2 inputs and 1 relay output
  • Programming by PC or DTMF (remotely)
  • Machine room communication

Link Lift Watch provides communication between a lift cabin and hotline service (first aid)
via PSTN network. After pressing the alarm button on the control panel in the lift cabin the
Link Lift Watch automatically dials up preprogrammed number (up to 6) and establishes
connection with hotline service (first aid).
The Link Lift Watch (LLW) can be programmed by PC.
The GSM Lift Watch also allows you communication to machine room via LLW Prepoj unit.


Features:

  • The unit is powered from a line only (you connect the line and a button only!)
  • The unit includes an acoustic part (a micro and a speaker) – a compact soution! The loudness of the micro as well as the speaker is adjustable independently.
  • Integrated anti-interference as well as a protection against static electricity.
  • Programming is either remotely by phone (DTMF tones) or by PC (serial port RS232 or USB with a convertor to RS232).
  • Includes a switchable relay contact - remote control by phone
  • It can be used for a remote control of the lift ( RESET). The time of relay closing is adjustable from 1 to 99 seconds.
  • Includes an indication light (LED) – yellow, indication of dialling the number
  • Includes indication light (LED)–green, indication – connection was made.
  • Time of button activation is adjustable from 0,5 sec to 5 sec.
  • Possibility of activation via third wire from „ transffer tool“ for communication with a machine room.
  • Security against misusing of alarm buttons (activation during failure 5-24V).
  • Includes a universal input which you can use for failure announcement (doors, power supply, etc..) A special phone number can be programmed.
  • All inputs as well as outputs are galvanicaly isolated – independent on polarity. (except the button and the third wire for the machine room).
  • Acoustic as well as optical signalling of NLLW status.
  • Possibility to program 6 numbers ( 16 digits – includes *,#,Pause,Flash) with a note if you wish to use a confirmation or not . Numbers are progressivelly dialled.
  • Regular automatic control of system functionality (automatic calling to preprogrammed numbers in set time period from 1 to 10 days)
  • Possibility to program a code for remote activation or deactivation of NLLW
File Title Release Date File Type Size (mb) Action
Alfacom_NLLW_ manual 07-20-2014 Documentation (pdf) 0.46 MB download
Alfacom_NLLW_BlackBox driver for USB W98SE - W-IP 07-20-2014 Documentation (zip) 0.09 MB download
Alfacom_NLLW_BlackBox driver for USB WXP + Vista64 07-20-2014 Documentation (zip) 0.59 MB download
Alfacom_NLLW_BlackBox program for setting parametres 07-20-2014 Documentation (zip) 0.40 MB download
Alfacom_NLLW_Call Center_manual 07-20-2014 Documentation (pdf) 0.55 MB download
Alfacom_NLLW_leaflet 07-20-2014 Documentation (pdf) 0.54 MB download
Alfacom_DOOR_ENTRY_SOLUTIONS 07-20-2014 Documentation (pdf) 5.43 MB download

To access this product file, get partner STE status


Models:
  • Voice – Link Lift Watch 1 lift
Specifications:
  • Operation position: various
  • Operating conditions
    • Temperature: +5 ° C ÷ +40 ° C
    • Humidity: 10% to 80% at 30 °C
  • Power supply – powered via analogue line
  • External signaling: LED or bulbs 12V (24V) max. 100 mA
  • Relays contacts: 2x24V / 100 mA
  • Dimensions
    • Basic Unit: 110 x 78 x 52 mm
    • LLW Prepoj: 71 x 34 x 61 mm
Options:
  • LLW Prepoj has been designed as an accessory for Link Lift Watch. It is designed for communication between a lift cabin and a machine room. It is installed in the machine room.
  • Call Center software – The Alpha Lift is a database software designed for collection of calls (emergency, service, error) and SMS from a lift cabin (GSM Lift Watch, Link Lift Watch). It also provides language support (Alpha language SW), reports generation (Alpha Report). The programs Alpha Lift and Alpha Report are network programs and they share the database.
  • Alpha Floor Talker
    • The Alpha Floor Talker is designed for announcement of floor numbers when the lift cabin stops,
    • Serial or parallel (most often used formats) connection to the BUS,
    • Floors announcement, lift cabin movement, doors movement, overweight etc.,
    • Possibility to built up a message in a PC and record to Alpha Floor ,
    • Talker via USB,
    • Announcement can contain a ring, advertisement, etc.,
    • Language support – two simultaneous languages – mix ,
    • possibility (e.g. Czech and English),
    • Setting of loudness, external speaker connection.

Machine room useMachine room use.jpg


Connectivity option:

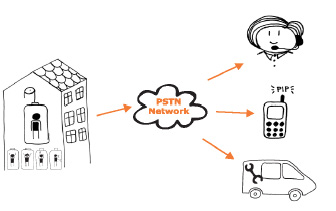

Emergency call use.jpg
Emergency call use
