IPDP SLIM - SIP based IP video door phone with integrated RFID proximity reader

Print
The newest device
IPDP Slim proximity
Main characteristics
SKU 1987
Vendor Alfacom
Category Intercoms & access
Standart VoIP/SIP - WiFi
System output 48V at I < 1A, 2A at U < 30 V
Power source 12VDC ± 2V , 10-12VAC ± 2V
Protocols IP, TCP, UDP, HTTP, TELNET, SIP, RTP
Interface LAN 10/100 Base-Tx, RJ45, H.263/H.264, G711u, G.711a, G726, GSM
Management VoIP (RTP) èëè Web GUI
Dimensions, HWD 185 x 99 x 35mm
Weight 0.5 kg
Shipment Worldwide


IPDP SLIM - SIP based IP video door phone with integrated RFID proximity reader


The  BRAVE Slim door intercom is designed as universal project to be suitable for  different installation on the field and brings more features and possibilities.

  • Power over Ethernet (PoE) -
  • compatible with 10Mbit/s, 100Mbit/s,
  • 1Gbit/s Ethernet
  • VoIP / SIP Door Phone
  • IP Camera
  • Audio and video
  • HTTP management
  • Optional RFID proximity reader
  • 125kHz integrated inside
    • EM Marin
    • HID
  • Vandal-proof version


IPDP Brave Slim new generation of door phone based on SIP protocol. Validated on several IPBXs (Cisco Call Manager, Alcatel Omni PCX, Asterisk, Nexspan, Panasonic, etc.), the IP Door Phone IPDP SLIM integrates easily with any IPBX supporting SIP v2.

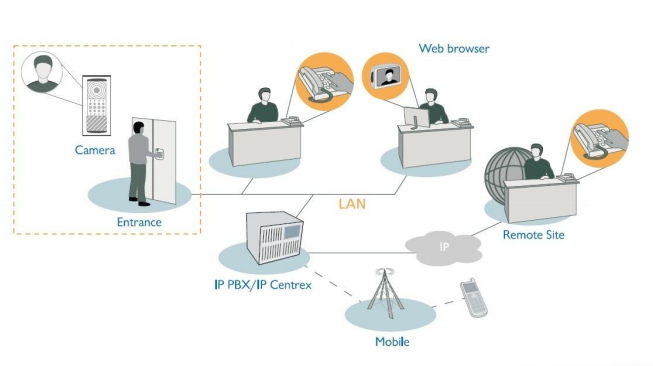

No more wiring. Now, just a network cable is needed for audio, video and data. The IP Door Phone IPDP SLIM naturally connects to your IP network. In addition to voice, the IP Door Phone IPDP SLIM is able to broadcast the video stream to IP phones or softphones supporting video codecs H.263 / H.264. You can control the door from your telephone or computer directly.

The IP Door Phone IPDP SLIM offers a great flexibility and integration. To avoid wiring, the IP Door Phone IPDP SLIM can interface with a WiFi. Through the « EOM Project Welcome » program, Alfacom is able to adapt its model in various cases both for residential or industrial customers.

We offer a specific integration for developing of other types of solutions such as toll gates, terminals highways, remote parking, etc.


Features:

  • Power over Ethernet (PoE) - compatible with 10Mbit/s, 100Mbit/s, 1Gbit/s Ethernet
  • RTSP (real time streaming protocol) - video surveillance enabled for H.264
  • PC internet intercom system includes free of charge video softphone apps:
    • iOS version of video softphone app for iPhone/iPad
    • Android version of video softphone app
    • Windows version of video softphone app

  • IP rating 44
  • Optional integrated RFID access control reader with time & attendance SW
  • 125kHz reader (EM Marin and HID Proximity technologies)
  • Optional snapshots / images storing - events recording
  • Optional centralized management of the access control system via TCP/IP  or RS485
  • Optional WEIGAND interface
  • HID or EM-MARIN proximity cards, 125kHz
  • Compatible IP phone systems:
    • 3CX with quick setup guide included
    • Aastra NeXspan
    • Alcatel OmniPCX with quick setup guide included
    • Asterisk
    • Avaya
    • AVM Fritz!Box with quick setup guide included
    • Cisco CallManager with quick setup guide included
    • Gigaset pro
    • IP Cortex
    • Karel IPv50
    • Mitel
    • Nortel
    • Panasonic with android video softphone app for Panasonic KX-UT670 SIP phone
    • Quadro Epygi with quick setup guide
    • SARK
    • Snom ONE
    • SWYX
  • tested with Snom, Grandstream, Yealink, Panasonic, Polycom IP phones
  • Two 16-digit numbers (IP address) with each button
  • Day/night switching
  • Possibility of the call extension by * or # choice
  • Possible to connect two independent locks for door opening
  • Possible use of 5 switch modes (e.g. camera, lighting, gradual opening)
  • Two codes for hanging up the guard from telephone
  • Two codes for door opening from telephone
  • Six code locks (password from buttons at the door)
  • Integrated heating of printed circuit
  • Permanent lighting through visiting cards
  • Built-in colour camera, angle of camera can be changed by approx. 15% upwards/downwards
  • Ethernet – 10/100Mb with standard 10BaseT and 100BaseTx
  • Web server for remote configuration – BOA
  • Software for Internet telephony (VoIP) – Linphone
  • Operating system – Linux 2.6
  • USB for connection camera
    • USB guest 1.1
    • Software GSPCA software for video transmission to the browsers in PC – W3CAM (J-PEG, RTSP Stream)
  • SIP connection
    • P2P
    • PBX network system
  • WEB
    • Firmware upgradeable
    • Interface for control and setup parameters


Power over Ethernet Benefits:

For network designers and administrators, PoE simplifies the task of powering devices in remote locations - no dependency on AC outlets.

  • Cost savings - PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required.
  • Flexibility - A PoE device can be located anywhere without the need for AC outlets.
  • Safety - Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Voltage (SELV) classification.
File Title Release Date File Type Size (mb) Action
Alfacom_Door Phone IPDP SLIM datashhet 07-20-2014 Documentation (pdf) 0.43 MB download
Alfacom_Door Phone IPDP SLIM quick installation guide 07-20-2014 Documentation (pdf) 0.66 MB download
Alfacom_Door Phone IPDP SLIM manual 07-20-2014 Documentation (pdf) 1.78 MB download
Alfacom_DOOR_ENTRY_SOLUTIONS 07-20-2014 Documentation (pdf) 5.43 MB download
Alfacom_File for printing nameplates 07-19-2014 Documentation (xls) 0.02 MB download

To access this product file, get partner STE status


Features
  •  Door Phone VoIP, compatible with IPBX supporting SIP v2.
  •  SIP proxy server mode to register your IP phones on the Door Phone.
  •  Voice and Video stream broadcast on IP phones with video support.
  •  IP Camera
  •  HTTP Management.
  •  2 relays control
  •  WiFi option
  •  Day & night service

VoIP
  •  Signalisation: SIP v2
  •  Codecs Audio: G711u, G.711a,  G726, GSM
  •  Codecs Video: H.263 / H.264
  •  Protocols: IP, TCP, UDP, HTTP, TELNET, SIP, RTP
  •  Management: web, telnet
  •  Interface: LAN 10/100 Base-Tx, RJ45
  •  Compatible: All SIP v2 IPBX. Validated on Cisco Call Manager, Alcatel OMNI PCX, Asterisk, Nexspan, Panasonic, 3CX, Epygi.

Technical data

  • Power supply
    • 12VDC ± 2V , 10-12VAC ± 2V
    • Max. consumption: 300mA at 12VDC
    • Max. voltage of switch contact:
    •  48V at I < 1A
    • Max. current of switch contact:  2A at U < 30 V
  • Working temperature: -20°C ÷ +50°C
  • Dimensions: 185 x 99 x 35mm

File Title Release Date File Type Size (mb) Action
Alfacom_Door Phone IPDP SLIM datashhet 07-20-2014 Documentation (pdf) 0.43 MB download
Alfacom_Door Phone IPDP SLIM quick installation guide 07-20-2014 Documentation (pdf) 0.66 MB download
Alfacom_Door Phone IPDP SLIM manual 07-20-2014 Documentation (pdf) 1.78 MB download
Alfacom_DOOR_ENTRY_SOLUTIONS 07-20-2014 Documentation (pdf) 5.43 MB download
Alfacom_File for printing nameplates 07-19-2014 Documentation (xls) 0.02 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
Alfacom_Door Phone IPDP SLIM datashhet 07-20-2014 Documentation (pdf) 0.43 MB download
Alfacom_Door Phone IPDP SLIM quick installation guide 07-20-2014 Documentation (pdf) 0.66 MB download
Alfacom_Door Phone IPDP SLIM manual 07-20-2014 Documentation (pdf) 1.78 MB download
Alfacom_DOOR_ENTRY_SOLUTIONS 07-20-2014 Documentation (pdf) 5.43 MB download
Alfacom_File for printing nameplates 07-19-2014 Documentation (xls) 0.02 MB download

To access this product file, get partner STE status


SMYLE panel in 4 models with 1 or 2 buttons:
  • Brave Slim - C - Comfort model
  • Brave Slim - C/C - Comfort model with analog camera
  • Brave Slim - LC - Low cost model
  • Brave Slim - LC/C - Low cost model with analog camera

Basic features of BRAVE door intercoms
  • SLIM solution – surface installation only
  • IP 44 casing protection
  • LED cards lighting
  • Integrated analog color camera (C/C, LC/C)
  • 1 (2*) relay with 8 different operational modes
  • possibility to use electrical lock PSU for feeding the unit (C)
  • elektronical loudness settings ( without neccessity open the unit)
  • adjustable tones detection for REDIAL or Hanging Up
  • integrated RTC ( realtimeclock) circuit – automatical DAY/NIGHT switching (C)
  • programming by phone DTMF or by USB cable from PC**
  • 24 digits length of number including * # Flash and Pause

(C/C, LC/C) – models only
 * Comfort version only
 ** USB cabel is an option
