DT-MMS. Powerful Multi-frequency Multi-band 16 BTS IMSI/IMEI/TMSI Catcher

Print
The newest device
DT-MMS IMSI catcher in vehicle
DT-MMS IMSI catcher in vehicle
  • DT-MMS IMSI catcher in vehicle
  • DT-MMS IMSI catcher in vehicle
  • DT-MMS IMSI catcher in vehicle
  • DT-MMS IMSI catcher in vehicle
  • DT-MMS IMSI catcher in vehicle
Main characteristics
SKU 2157
Vendor Intercept
Category IMSI Catchers
Standart 5G/NSA - 4G/2600/1800/2300/800/700 - More … 5G/NSA - 4G/2600/1800/2300/800/700 - 3G/850 /900/1700 /1900/2100 - 2G/900/1800/850/1900 - CDMA/450/800/1900 - WiFi/5000 - GPS - Bluetooth™
Frequency 400MHz - 6GHz
System output up to 200W
Power source 22V - 34V DC
Active range (m) 1000
Installation In the vehicle, stationary
Processor Freescale i.MX6 ARM Cortex-A9, Quad core processor, 1 GHz each core
OS Windows 7, 10, Androide
Battery Li 11,5x4x6 cm, 300g
Max. hold time ~6 hours
Max. working time ~2 hours
Antenna Directional or omnidirectional
Q'ty of channels 16 BTS
Connectors USB; RJ-45
Interface 802.1Q VLAN support for 4096 VLAN IDs; Port based VLAN routing
Management API, IP
Delivery set Sender, Laptop, Antenna, S\W
Dimensions, HWD 350 x 330 x 120 mm
Weight 25 kg
Shipment Free worldwide

Multi-Channel, Multi-Band High Power Base Station

MORE POWER AND DISTANCE
WIRELESS NETWORK MONITORING & SCANNING
FREQUENCY AGNOSTIC – FROM 400MHZ TO 4GHZ
FLEXIBLE CONFIGURATION - UP TO 16 RADIOS
LTE/UMTS/GSM/CDMA2000

DT-MMS in vehicle, IMSI catcher in vehicle

The DT-MMS is a multi-channel, multi-band high power base stations. The system can be configured to support up to 16 base stations transmitting on any combination of up to 6 frequency bands simultaneously. Each frequency band utilizes highly filtered 25 Watts or 100 Watts power amplifiers. The system only requires a single wide-band antenna for operation. This simplifies the integration task and makes it possible for the system to be moved from one vehicle to another.

Each BTS can be configured dynamically and independently on any frequency and radio access technology supported by the baseband radios: GSM/GPRS/EDGE, CDMA2000, 3G or LTE-FDD/ TDD. The system offers frequency agility from 400MHz to 4 GHz on each radio. The DT-MMS system includes: power amplification, filtering, cabling, antenna(s) and the multi-radio baseband unit. It is compatible with both portable use cases and vehicular applications, allowing for high operational flexibility in the field. The DT-MMS is offered in versatile configurations, including a rugged portable rack-mount enclosure that houses the 6U rack mount Transportable Amplification Unit and separate enclosure for one or two 3U half-width Portable Base Station Unit.

Portable Base Station Unit (PBU)

The PBU is at the core of the DT-MMS design. It is a multi-channel base station unit
that includes up to 8 base stations. Each radio is capable of supporting a 2G, 3G or
LTE (FDD and TDD) base station as well as monitoring the surrounding mobile networks.
The system is frequency agile and can support all cellular bands from 400MHz
to 4 GHz. The PBU can either be used as the radio source for the Transportable
Amplification Unit (TAU) when a larger coverage is required or with the lower power
Portable Amplification Unit (PAU) for short range operations.
DT-MMS


Transportable Amplification Unit (TAU)

The TAU is a high power multi-band radio front end that can amplify
the output of one or two PBUs (up to 16 base stations) simultaneously.
The TAU supports up to 6  frequency bands (FDD and
TDD) simultaneously. The peak output power per band can be  25 Watts
or 100 Watts depending on the configuration. The system only requires a
single wide-band  antenna for cellular operation.
All transmit and receive bands are highly filtered and the status  of each power
amplifier is constantly monitored and reported. The output power of each cell can be
independently controlled via a graphical user interface.
MMS Catcher-1
File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


MANAGED ACCESS
   BORDER SECURITY    LAW ENFORCEMENT    DISASTER RECOVERY

IMSI/IMEI catching – in this mode the system detects identities of all mobile phones within it’s effective range.

Selective jamming of communication – in this mode system operator can block communication of all mobile phones defined as targets.

Presence verification ‐ This operational mode is intended to detect and select targets of interest (according to IMSI/IMEI identifications) from the total number of subscribers located within operational area of the system.

Data Analysis / Target Correlation ‐ This mode allows the system to detect identities of mobile phones (IMSI/IMEI) which belong to particular targets.

Direction Finding Support – the system forces target’s phone to get into transmit mode (without any visible mark) so that DF / Homing systems can track the transmission direction to identify the target mobile.

Downgrade from 3G / 4G to GSM for operation by an active or passive interception complex
DT-location

Based on the above capabilities, the system can support variety of operational needs such as:


‐ Detection of identities of all mobile phones in the areas of interest;
‐ Identifying of mobile phones which belong to particular targets;
‐ Selective jamming of phones in restricted areas (prisons, embassies, etc);
‐ Presence detection of targets in specific area of interest (border crossing, airports, public areas);
‐ Detect location of hidden mobiles (prisons, classified places);

  System can operate with variety of power sources such as AC supply, batteries, car supply etc and by that, it can be installed and operated in many types of applications and environments (fixed installation, remote control configuration, transportable, vehicular, man pack).

Attention:

The IMSI catcher operate only with IMSI, IMEI and TMSI
To get MSISDN (public number) need to use ONLY fully functional active interception systems

File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

Base kit

Catcher, Amplifiers, Android tablet,

carrying case, antennas, connecting wires,

power supply unit

Optional

Laptop, Amplifiers

Direct Finder (DF)

Power amplifier for 10 watts and more

Lithium Extended Battery

Various carrying bags
MMS Catcher
File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

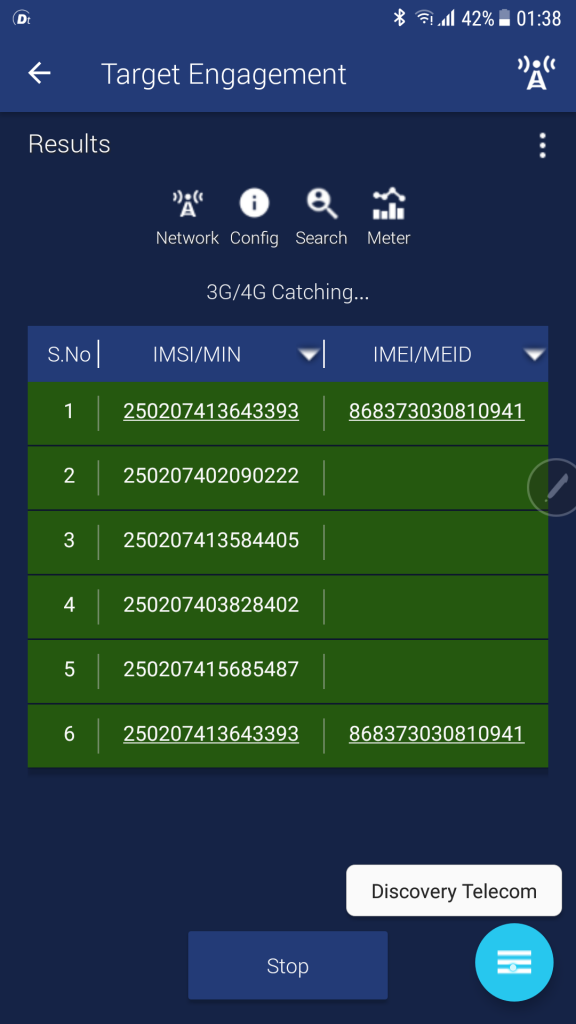

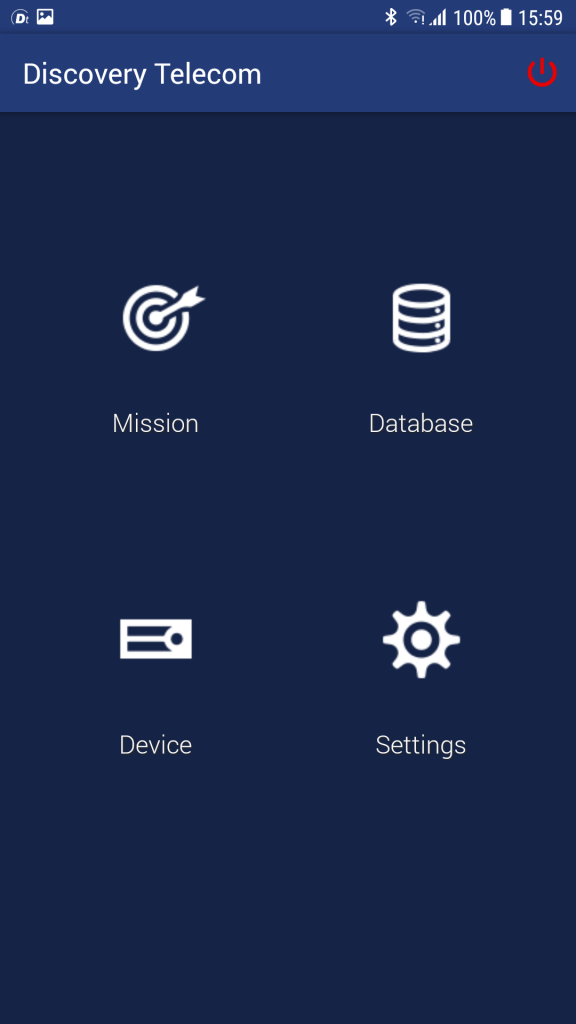

IMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery TelecomIMSI CATCHER Application - Discovery Telecom
File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status


Video of IMSI / IMEI catcher in Registration mode



Video of IMSI / IMEI catcher in Scanning mode


File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

File Title Release Date File Type Size (mb) Action
IMSI Catcher DT-MMS with 16 base stations. Specifications 11-06-2018 Documentation (pdf) 0.95 MB download
End User Certificate (EUC) to apply for purchase 03-03-2021 Documentation (pdf) 0.09 MB download

To access this product file, get partner STE status

Additional Product Information
Long range of application - up to 1 km in the city
Wide frequency band from 400MHz up to 6GHz
Support of all standards: GSM, UMTS (3G), LTE (4G), CDMA (Optional)
Remote control
3D Direct Finder. Shows target altitude
Exact target location on the map without leaving the car
