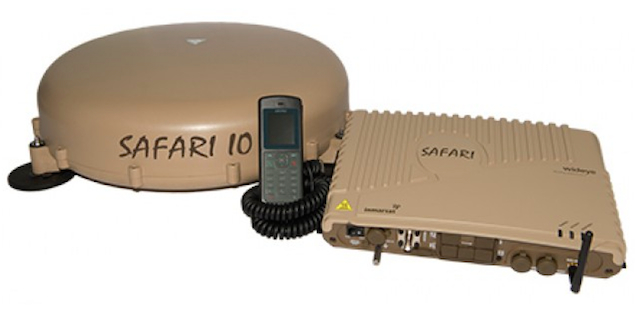

The SAFARI and SAFARI 10 are Land Vehicular BGAN Terminals operating on the Inmarsat BGAN Satellite Network. Both of the units have one of the highest dynamic Land Vehicular BGAN antennas in the market with a turning rate of 60° per second (full circle in 6 second), The complete system consists of three fully integrated units - an IP44 rated Transceiver Unit (TU) with built-in Wi-Fi, an IP66 rated Handset and an IP56 rated roof mounted Antenna Unit (AU), Both Antenna Units are compact and lightweight, ideal for vehicles on-the-move. It has been designed for the most demanding environments - and is easy to carry when traveling to various locations around the world. Both Antenna units are designed to withstand windloading of up to 210 km/hour (130mph) with the included magnetic mounting kit.
The SAFARI and SAFARI 10 are Land Vehicular BGAN Terminals offer the user standard voice (4kbps AMBE+2), 3.1 KHz high quality voice/fax, and Streaming (up to 128kbps for the SAFARI and up to 256kbps for the SAFARI 10) and Standard IP data service (up to 448/464 kbps send/receive for the SAFARI and 492kbps send/receive for the SAFARI 10) for various applications, including internet browsing, email and file transfer functions.
Both terminals allow simultaneous use of all services including voice/fax, data and bonded multiple SMS messages. Physical interfaces include, 2 x RJ-11 for Voice and Fax, 2 x RJ45 for Ethernet LAN connections, a RS232 port for GPS output and 4 x GPIOs, for external control or indications.
SPECIAL FEATURES
- Firewall (full-featured),
- Fleet Tracking Capability - Geofencing, up to 10 polygon areas can be configured,
- Wi-Fi Access Point (802.11b/g)
- Push-To-Talk (PTT),
- Forced Dialing - SAC Configuration Control,
- Restricted Dialing (for crew calling),
- Handset call priority (allow Handset to pre-empt other active calls),
- Remote Access (for Configuration and Diagnostics),
- Backup/Restore of Configuration Setting,
- Remote Transmitter Off via GPIO (Radio Silence),
- SIM Lock based on IMSI/DP Code/SP Code/APN,
- Multilingual WebConsole (English, Spanish, Chinese (Simplified & Traditional), Dutch and Japanese),
- Multi-User WebConsole with configurable access rights,
- Time/Volume limited data sessions (to avoid bill shock),
- PPPoE,
- MAC Filtering,
- Port Forwarding,
- Hands Free Operation,
- Remote Management (using SMS/AT Commands),
- IP Watchdog (for failsafe operation),
- External Ringer Control,
- Supports 11 PDP Contexts simultaneously.
The customer has a choice of Antenna Color, either White or Tan for both the SAFARI™ and the SAFARI™ 10. Both antennas have built-in magnetic roof mounts, which are provided as standard. Simply place the Antenna Unit on the roof of the vehicle, connect it to the Transceiver Unit and connect the unit to the vehicle’s power source. The vehicle is now a mobile communications hub, which multiple users can access at the same time via the wired interfaces and the standard built-in Wi-Fi feature. The SAFARI™ and the SAFARI™ 10 are so versatile that the Built-in WebConsole of the unit can be accessed via any web browser including Wi-Fi-enabled Smartphones such as BlackBerrys, iPhones, iPads, Android phones and PDAs via the units secure Wi-Fi connections.
Both units also have a continuous GPS output feature which allows for GPS data to be sent out via the RS232 port in standard NMEA 0183 format. With in-built GPS module, the units are able to provide tracking and monitoring required in fleet management applications.
Type Approval Certificate:
Certification mark: FCC, CE, Industry Canada
GMPCS MoU - ITU REGISTRY
Compliant to RoHS, WEEE Logo
Wi-Fi compliant IEEE802.11 b/g
Operating Frequency
- Transmit : 1626.5MHz- 1660.5MHz
- Receive : 1525MHz -1559MHz
Transceiver Unit to Antenna Unit RF Cabling max loss
12dB at 1.6GHz and 4 Ohms DC loop resistance
Services
- Voice: 4kbps AMBE+2
- Fax:
- G3 Fax (>45° elevation for SAFARI),
- G3 Fax (>20° elevation for SAFARI 10),
- Streaming IP:
- 32,64,128 kbps, for SAFARI,
- 32,64,128, 256 kbps, for SAFARI 10 (>45° for 256 kbps),
- Short Message Service(SMS): Up to 160 characters (3G standard)
- Larger SMS content (>160 characters): supported as multipart or segmented SMS
- Background IP Data:
- Up to 448/464 kbps for SAFARI (send & receive),
- Up to 492 kbps for SAFARI 10 (send & receive).
Router Functions
- Single User Router Mode: NAT disabled, with option to enable/disable DHCP (Modem mode)
- Multi-User Router Mode: NAT disabled, with option to enable/disable DHCP
Interfaces
- 2 x RJ-45 Ethernet ports (one is Power over Ethernet (PoE) port)
- 1 x Primary Handset connector
- 1 x GPS output connector (NMEA-0183, Offset latch RJ11)WLAN 802.11 bfg built-in
- 1 x Antenna Connector:
- Transceiver Unit: TNC female
- Antenna Unit : TNC female
- 2 x Standard phone port (RJ11) for FAX and phone
- 1 x SIM Card Slot
- 3 x Status indicator LED
- 1 x Power On/Off switch
- 1 x DC Power Input socket
- 1 x Ground stud connector
- 1 x GPIO signal port connector
- 1 x Transmitter On/Off
- 1 x Ignition On/Off
- 1 x Buzzer
- 1 x Illuminate Remote On/Off
- 1 x Safe Mode switch
- 1 x Circuit breaker reset switch
Power Supply
- DC input: +12V /24V (+10.8V to 32V)
- Power (Max)- w/o PoE:60Watts
Environmental Conditions
- Transceiver Unit
- Operating Temperature : -25°C to +55°C
- Storage Temperature : -40°C to +80°C
- Operating humidity : 95% non-condensing at +40°C
- Ingress protection : IP44
Antenna Unit
- Operating Temperature : -25°C to +55°C
- Storage Temperature : -40°C to +80°C
- Operating humidity : 95% non-condensing at +40°C
- Ingress protection : IP56
- Turning Rate : 60 deg/ second
- Turning acceleration : 50 deg/ second2
Primary Handset
- Display:
- 2 inches, 65K color, 220 x 176 pixel,
- 2" TFT Liquid Crystal Display
- Dimension:
- 142 x 56 x 22 mm
- 5.6 X 2.2 X 0.9 in
- Weight: 390g / 0.8 lbs
- Operational Temperature: -20°C to +55°C
- Storage Temperature: -30°C to +70°C
- Ingress protection: IP66
Feature Highlights of Primary Handset
- Configuration setting
- Basic circuit switched telephone functions
- Phone book retrieval from the SIM card
- Call Log for most recent 5 missed, received and dialed calls with date and time stamps
- Short Message Services (SMS)
- User friendly Menu driven graphical user interface
- Hands free Headset
 | Global Coverage & Service With Ground Control service, BGAN terminals may connect anywhere on the globe except for the poles. If you are within one of the three colored regions, you may connect at broadband speeds, as well as make and receive phone calls from anywhere.
Today there are three BGAN Satellites that give contiguous worldwide coverage.
Each I-4 can generate 19 wide beams and more than 200 narrow spot beams. These can quickly be reconfigured and focused anywhere on Earth to provide extra capacity where needed.
Excellent In Stormy Weather Since a BGAN terminal uses the "L" band for reception and transmission (the L band has a very long wavelength), it is able penetrate through clouds and other atmospheric condition far better than large satellite dishes
|
Wideye Safari Complete Package Includes:
► 9.9" inch domed tracking antenna
► In-car Transceiver (Controller) with Wi-Fi
► 3 meters flexible antenna cable
► Primary handset with 1.8 meter cable and cradle
► 1.5 meters Ethernet cable
► 1 meter GPIO (General Purpose Input/Output cable
► 1 meter DC power cable for direct connection to vehicle power
► 3 meter DC power cable with 12 volt vehicle plug adapter
► 1.8 meter serial port cable for GPS output
► Mag-mount and permanent roof mounting hardware
► Rubber Tape (for sealing connector on antenna)
► Quickstart Guide, Users Manual, Installation Manual (on CD)
► CD with BGAN Max utility
