Madcom VoIP 8 channel LTE gateway

Main specifications

SKU	2273
Vendor	Madcom
Category	Medium enterprises
Standart	VoIP/SIP/H323 - 4G (LTE) - More … VoIP/SIP/H323 - 4G (LTE) - 2G (GSM)
Power source	12V
SMS(MMS)	sms server, ussd
Antenna	8 (SMA-female)
Memory	RAM 16MB/ Flash 4MB
Q'ty of channels	8 (2G+4G)
Q'ty SIM per channel	1
Interface	Lan, PC, USB
Management	WEB
IMEI changing	Yes
Dimensions, HWD	250 х 223 х 40 mm
Weight	1.55 kg
Shipment	Worldwide
Price	1104 $
Other currency	950 €

In stock

Review

Key features

Specifications

Madcom control panel

Download

Review

Product introduction

Madcom is a professional developer and manufacturer of VoIP products. Madcom provide new brand VoIP communication devices and solutions. And we also offer customized products and OEM service. They are a cost-effective gateway for SOHO, SMEs and system integrators and it also opens up new revenue generating opportunities for service providers.

Madcom - 8/8 series is able to process traditional voice call service and internet data service. Compare to the Madcom series VoIP Gateway, Madcom - 8/8 series adapt new hardware and software structure, which supports up to 8 concurrent calls.

Special Features

Support G729 a/b/e, G723.1, G.711 A/U law, iLBC auto-selecting

Proxy Encryption Solution for IP Block

Support SIM Bank

VPN(pptp)

SIM Card Rotating(64) Optional

Solution to solve the SIM card blocked by:

Accumulated Call Duration
Accumulated Connected Calls
Accumulated Calls
Consecutive Failed Calls
Consecutive No-Alert Calls
Consecutive No-Answer Calls
Consecutive No Carrier Calls
Consecutive Short-Duration Calls

Station intelligent switching

(Remote Management System)

Port Inter-Calling

Fake Ringback

Call Duration Limitation for SIM Card/Single

Dial Plan/Prefix Inward Translation/Intelligent Routing

Web Browser: Firefox/Chrome /IE/Opera

Key features

Mobile Features

SMS Send, Receive and Forward (Mobile/SIP/HTTP) SMS Inbox AT Command, USSD SMS Format: PDU/TXT PIN Code Management GSM Polarity Reversal Carrier Selection Caller ID Hidden(need SIM Card support)

Maintenance and Management

Multi-language Interface USB Serial COM Configuration Backup and Restore Support HTTP/TFTP Upgrade Call statistics: ASR, ACD, PDD Remote Management System

Specifications

Model	Madcom 8/8
Number of Channels	8 channels
Frequency	4G(LTE)
SIP Specification	·SIP/2.0 RFC3261 ·Session Timer RFC4028 ·STUN
Network Protocols	•DHCP/PPPoE/VPN(pptp) •NTP •Telnet/HTTP/FTP/TFTP •Encryption:Ejoin,VOS2000,RC4,XOP.Base64
Telephony Features	Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list
Telephony Signaling	·DTMF tone dectection/generation ·DTMF relay: in-band, RFC 2833 and SIP info ·Call forward: unconditional, no answer and busy ·N-way conferencing ·Caller ID display/generation, Mobile Number Portability
Voice Capability	·Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC ·Echo cancellation ·Silence suppression & detection(VAD, CNG) ·Adaptive jitter buffer ·Volume adjustable ·IVR customized
Number of Ports	·1 WAN 10/100Base-T ethernet(RJ-45 connector) ·1 LAN 10/100Base-T ethernet(RJ-45 connector) ·1 Console(USB)
LEDs	1 Power and 8 groups of card online and running status indicator
Power Supply	100-240VAC, 50 - 60 Hz IN, 12V/5A OUT
Operating Environment	•Operating temperature: 0 - 50ºC •Operating humidity: 10 – 90%RH
Warranty	12 months

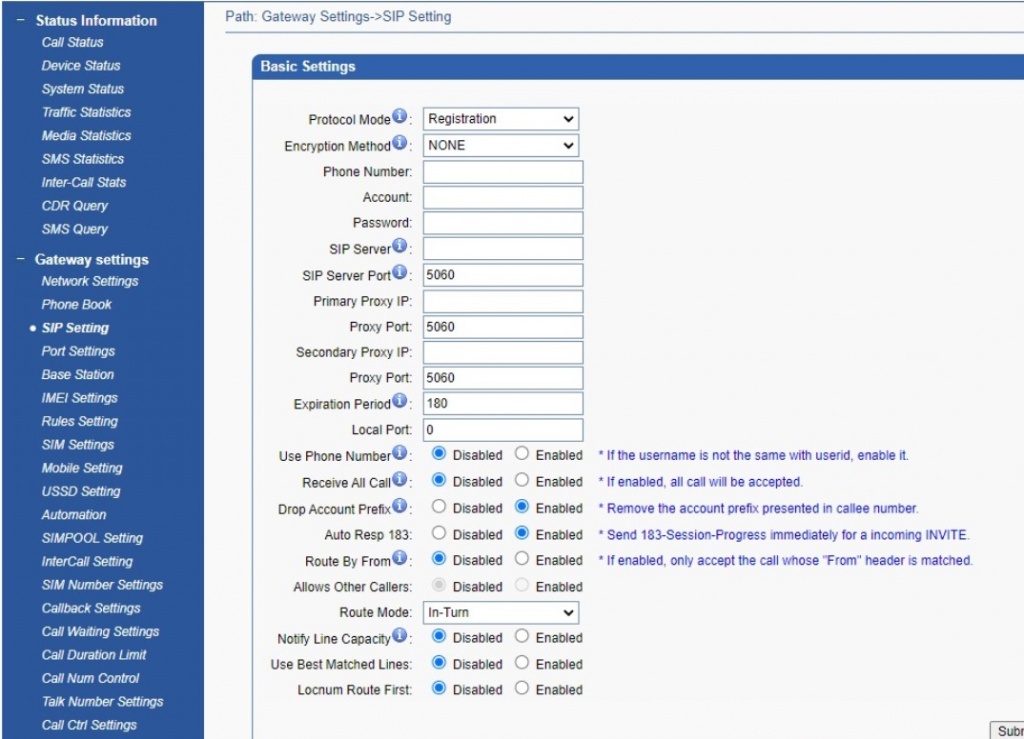

Madcom control panel

Download

File Title	Release Date	File Type	Size (mb)	Action
Madcom Gateway User Manual	05-01-2025	Documentation (pdf)	2.60 MB	download

To access this product file, get partner STE status
