COMPACTMARK G6. High Performance Laser Marking System

Print
COMPACTMARK G6
COMPACTMARK G6
  • COMPACTMARK G6
  • COMPACTMARK G6
  • COMPACTMARK G6
  • COMPACTMARK G6
  • COMPACTMARK G6
Main characteristics
SKU 2139
Vendor Lasit
Category Laser marking
Power source 110 – 230 Vac – 50Hz
Weight 490 kg
Shipment Worldwide


SOLID AND FLEXIBLE

CompactMark is a multi-functional center for laser marking. Made entirely of welded steel, and precision machined with ground ways and ball screws, it is configured with 3 standard positioning axes that can be expanded to 9 axes with optional “C” axis, rotating head, palletized pick and place or conveyors.

The Z axis, operated by the FlyCAD marking software, allows us to mark different thicknesses up to 400mm. All motors feature integrated encoders which can be controlled via a 3-axis joystick. This state of the art Smart Focus Technology enables the operator to utilize the preview function and immediately focus and center with no effort to begin marking.

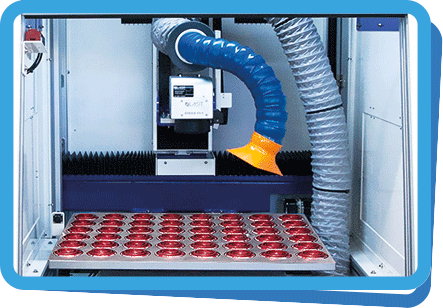

MAXIMUM PRODUCTIVITY

CompactMark G6’s movement along the X and Y axes allows marking a 600x400mm area, which can be used to mark a single article or a pallet with tens or hundreds of small articles, while retaining perfect centering.

Furthermore the work surface can tolerate loads weighing up to 150Kg.
COMPACTMARK G6

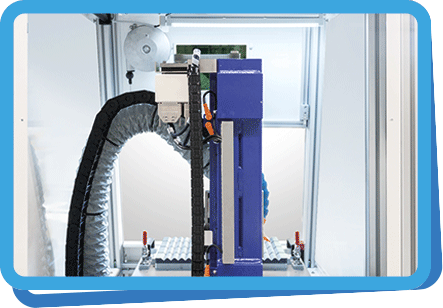

WELDED STEEL FRAME

CompactMark G6 is extremely rigid and ergonomic: its frame was developed entirely in welded steel. After thermal expansion, the frame is carefully finished to create support surfaces for
screws and sliding guides, resulting in the following  advantages:

  • Greater acceleration of the axes without vibrations;
  • Dimensional stability over time;
  • Rigidity in the event of moving the machine and/or accidentally bumping into it.
COMPACTMARK G6

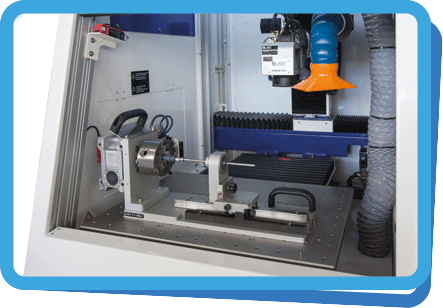

MARKING CYLINDRICAL PIECES

Marking on cylinders has never been easier than with the FlyCAD software combined with the W Axis.

The W axis has a resolution of 65,536 steps/turn and the mechanics are so precise that there is
no noticeable radial play.

This is key in obtaining precise markings that seamlessly blend the various components of the design.
COMPACTMARK G6
