Suppressor of drones based on active radar and thermal camera

Print
The newest device
Drone Suppressor
Drone Suppressor
  • Drone Suppressor
  • Drone Suppressor
Main characteristics
SKU 2115
Vendor Intercept
Category Drone' interception systems
Standart WiFi/900/2400/5000
Frequency 430 MHz - 6 GHz
System output 1600W (total jamming power)
Power source 90 260V
Area of coverage (m²) 10000000
Active range (m) 5000
Features Finds even Mini Drons at a large distance
Antenna Directional High Gain antennas
Weight 38 kg
Shipment Worldwide

The main Objective of the Drone Suppressor (DS) is to Neutralize civilian Drone /Quadcopter /UAV communication in order to prevent infiltrating sensitive location, secured compounds, Military bases and etc., or in order to protect a V.I.P against armful attack carried out by those systems.

The DS System is a high power outdoor Anti Drone /Quadcopter /UAV that can be monitored and controlled from a distance location using dedicated software. The DS System can be supplied either as an active system or reactive system that operates only after triggering an alarm when unfamiliar object reaches to the aerial security zone.

The proposed solution is comprised of three sub-systems that are fully integrated with each other over an Ethernet connection:

Detection subsystem:Air surveillance system, based on radar advanced software-defined, pulse-Doppler radar platform.
Recognition subsystem: Electro-Optic day/night observation system (detection range: 800 meter)
Soft Kill (neutralization) subsystem: High power reactive jammers (either collocated or distributed).



File Title Release Date File Type Size (mb) Action
Radar based UAV Suppression System 04-15-2017 Documentation (pdf) 1.25 MB download

To access this product file, get partner STE status


  • Blocks all Civilian drone/Quadcopter/UAV bands simultaneously
  • Effective coverage 3.5 km Detection, 2 km Neutralization
  • Optional Reactive System triggered by a Radar
  • Optional operation from a distance remote control computer
  • Outdoor casing
  • Various types of mounting and deployment options
  • Separate No interference to nearby frequency bands
  • VSWR & thermal protection
  • Overheat protection: 75?c cease operation, 71?c resume of operation
  • Operational Power: 90 – 260V.
  • Weight: approx. 38Kg
  • Antennas: Directional High Gain antennas
  • High Sensitivity Aerial Rada
  • Ability to lock on target while Jammer using optical system
  • Thermal Camera
  • Ability of recording


File Title Release Date File Type Size (mb) Action
Radar based UAV Suppression System 04-15-2017 Documentation (pdf) 1.25 MB download

To access this product file, get partner STE status

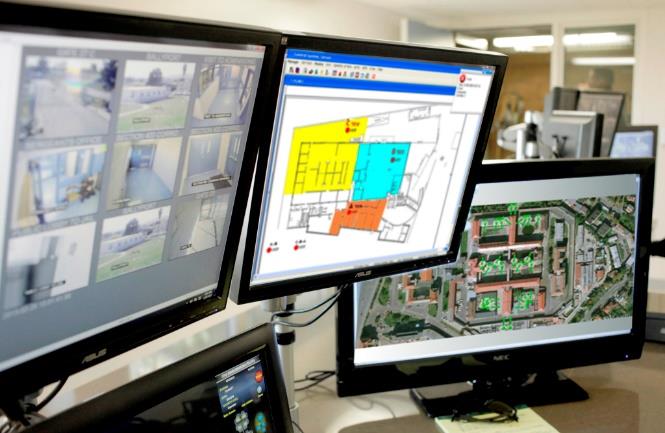

A Dedicated, configurable, user friendly command & control software module with the following features:

  • Visualization of the jammers operation upon a topographic/zone maps.
  • Visualization of the quadcopter location over topographic/zone maps could be assigned with different kind of radars either sectorial or 360°*
  • A Selective operation for each band and each Jammer.
  • Ability to control up to 100 MC-Horizon units from a control room.
  • Operational- individual /groups or altogether.
  • Optional – operation from distance computer by authorized user.
  • Automatic failure Indication operate / communication failure
  • Ability of tracking and recording Drone/Quadcopter/UAV movement
  • Operational language on demand
Control center
